Hobbywing Quicrun Fusion 2 in 1 40A ESC 1800KV Motor
ArrayR 3610,00
Description
Specifications:
| p/n (SKU) | 30120400 / 30120401 |
| Application | Various 1/10th Rock Crawler |
| Cont/Peak Current | 40A/ 160A |
| Input Voltage | 2-3S Lipo/6-9 Cell NiMH |
| BEC Output | 6V/7.4V adjustable, continuous current 4A (Switch mode) |
| Motor KV | 1200KV | 1800KV |
| Dia. / Length of Motor | 36mm/64mm |
| Shaft Dia/ exposed shaft length | 3.175mm/16mm |
| Motor Poles | 4 |
| Input Wires | Red-14AWG-200mmx1 / Black-14AWG-200mmx1 |
| Input Connectors* | XT60 |

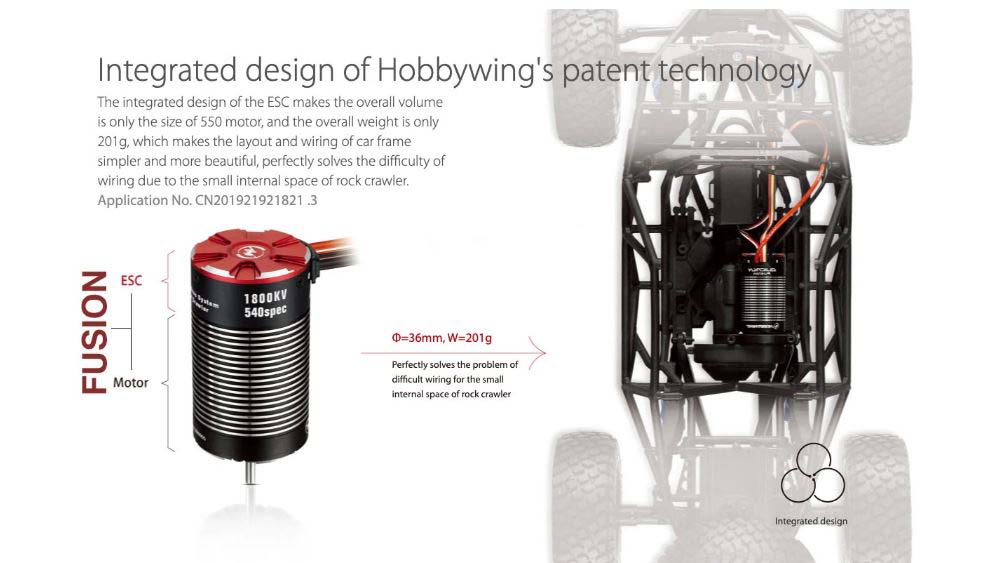

| Size / Weight | 36*64mm / 201g (including wire plug) |
|
|
|
| SET Button on ESC | N/A |
| LED Program box | Supported |
| LCD program Box | N/A |
| WiFi Module | N/A |
| Program Port | Independent programming interface(switch position) |
| Firmware upgrade | Not Supported |
