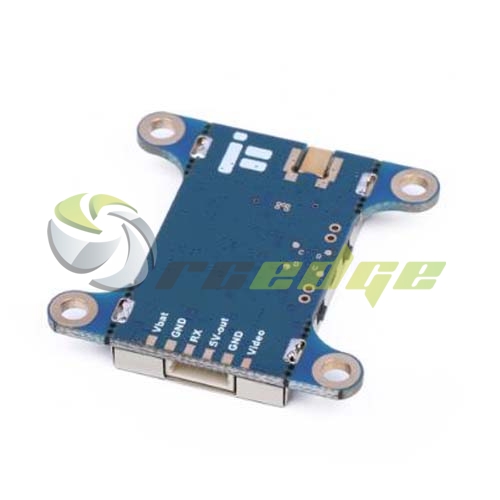

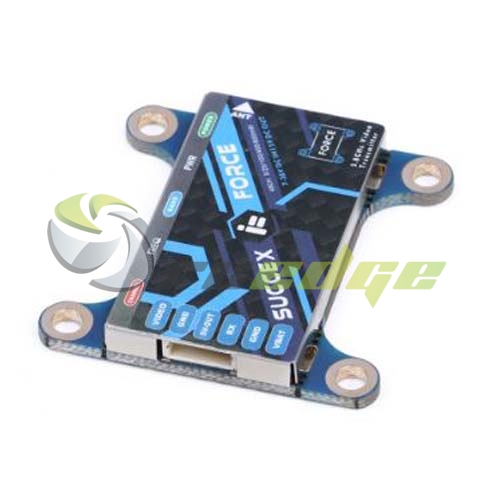

I-Flight Force 800mW Adjustable VTX

SucceX Force 5.8g 800mW Adjustable VTX

Features:

• The output power is stable;
• Transmit power 4 gear switch: 25mW/200mW/400mW/800mW;
• Output 48 frequency points,
• Frequency lock fast, the boot does not interfere with companions;
• Built-in output power self-check function;
• Full format video format: NTSC / PAL
• Wide input voltage range. low power consumption:
• 7V to 36V，+12V/380mA@800mW;

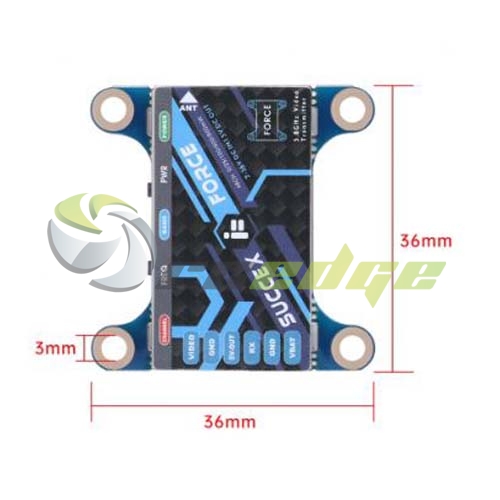

• Small size:36 x 36 x 3mm
• Mounting holes 4-M3
• Lightweight: 7.2g (excluding antenna)

Specifications:

• Item: SucceX-Force 800mW adjustable VTX
• Input voltage:
• Output voltage/ Max current: 5V 1A
• 12V input current: 40mA@PIT MODE, 95mA@25mW, 185mA@200mW，250mA@500mW, 380mA@800mW
• Output 48 frequency points,
• Size:36 x 36 x 3mm
• PIT/25mW/200mW/400mW/800mW

Package Includes:

1 x SucceX-Force 800mW adjustable VTX

1 x Cables set
