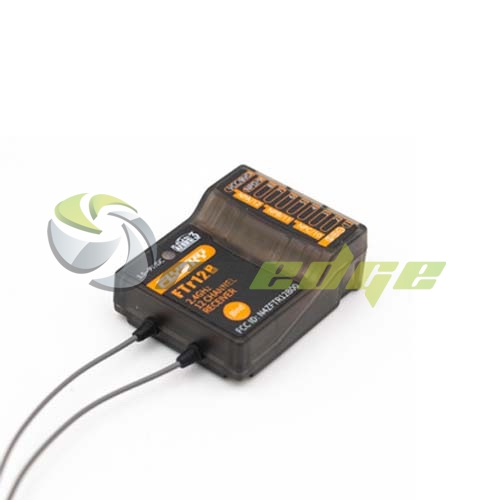

Fly Sky Receiver FTR12B

The FTR12B receiver adopts Flysky's third-generation automatic frequency hopping digital system (AFHDS 3), which
Features dual antennas and bidirectional data transmission commonly known as telemetry plus an i-bus out/s.bus terminal and PWM/PPM switching at CH1. Compatible with all AFHDS 3 transmitters and RF modules.

Features:

• This FTR12B receiver is able to apply to fixed-wing, glider, helicopter, engineering vehicle, etc.
• The FTr12B receiver is compatible with all AFHDS 3 transmitters and RF modules including PL18, NB4, NB4 Lite, FRM302, etc.
• It can output standard PWM, PPM, i.BUS out and S.BUS signal.
• With a compact size and light-weight, no worry to give any burden to your RC drone.
• Warranty: If there are any problems, please contact our store in time. We will give you a satisfactory solution.

Specifications:

• Product Name: FTr12B
• Model Type: fixed-wing, glider, helicopter, engineering vehicle, etc
• PWM Channels: 11(Version 2.0 will be upgraded to 12 channels)
• RF: 2.4GHz
• 2.4G Protocol: AFHDS 3
• Antenna: Dual Antennas
• Input Power: 3.5~9V
• Data Output: PWM/PPM/i.BUS out/S.BUS
• Temperature Range: -10℃ to +60℃
• Humidity Limit: 20%-95%
• Online Update: Yes
• Dimensions: 39 x 32 x 15mm
• Weight: 15g
• Package Information:
• Size: 84 x 64 x 38.4 mm
• Weight: 62g
