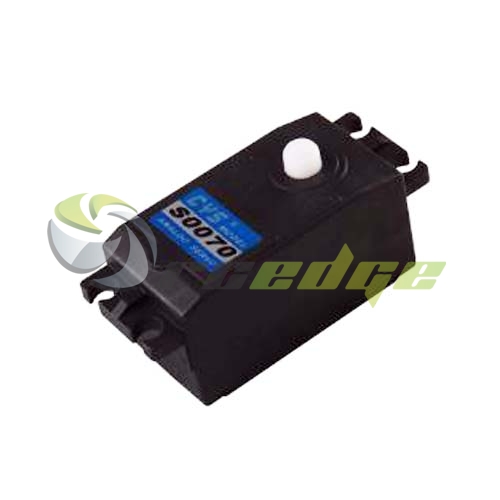

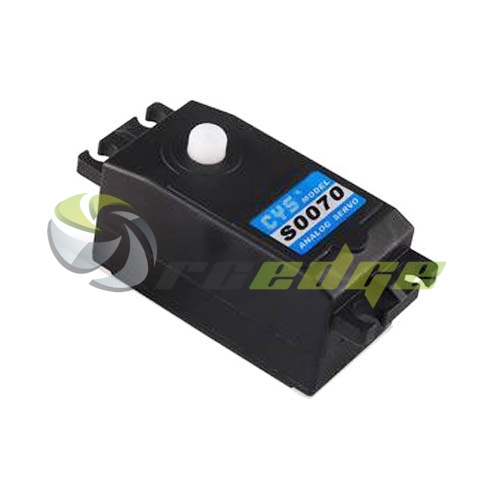

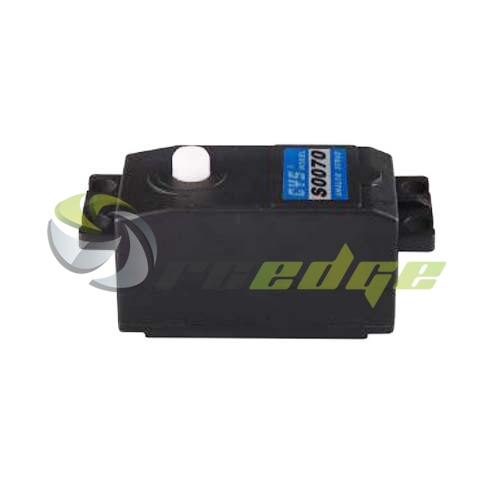

CYS S0070 Analog 6.0V Speed 0.35 Torque: 7.5kg (Retract)
ArrayR 300,00
Description
- Item NO.: CYS-S0070
- Description : 7kg landing torque servo for RC plane
- Size : 44.1 x 23 x 24.4mm
- Torque : 7.0kg.cm to 7.5kg.cm
- Speed : 0.40sec to 0.35sec/60 deg
- Voltage : 4.8Volts to 6.0Volts
- Weight : 30 plus/minus 1g
Specifications:
| Type | Analog |
|---|---|
| Weight | 30g plus/minus 1g |
| Size | 44.1 x 23 x 24.4mm |
| Control System | (+)Pulse Width Control 1500 micro sec Neutral |
| Operating Voltage | 4.8 to 6.0Volts |
| Operating Temperature Range | -10 to 50deg Celcius |
| Operating Speed (6.0V) | 0.4sec/60deg at no load |
| Operating Speed (7.4V) | 0.35sec/60deg at no load |
| Stall Torque (6.0V) | 7.0kg.cm |
| Stall Torque (7.4V) | 7.5kg.cm |
| Operating Angle | 45deg.one side pulse traveling 500 micro sec |
| Direction | Anticlockwise/Pulse Traveling 1000 to 2000 micro sec |
| Current Drain (6.0V) | 20mA/idle and 200mA no load operating |
| Current Drain (7.4V) | 20mA/idle and 260mA no load operating |
| Stall Current | 0.8A/0.9A |
| Dead Band Width | 4 micro sec |
| Motor Type | Iron core |
| Bearing Type | Ball bearing |
| Horn gear spline | 25T |
| Gear Type | Plastic |
| Connector Wire Length | 300mm plus/minus 5mm |
| Wire info | Brown/Black = Negative |
| Red = Positive | |
| Orange/White = Signal |
