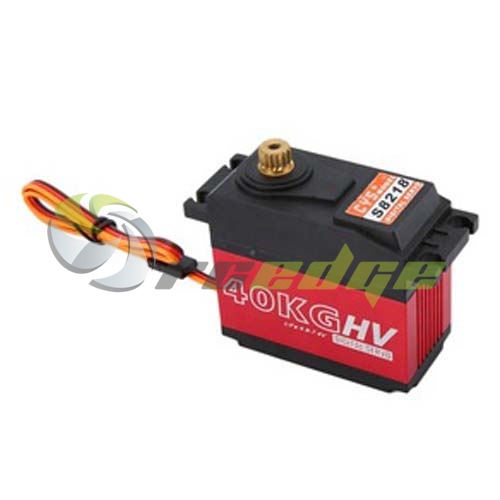

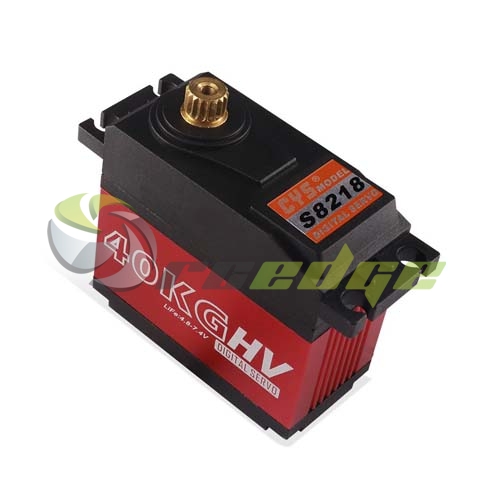

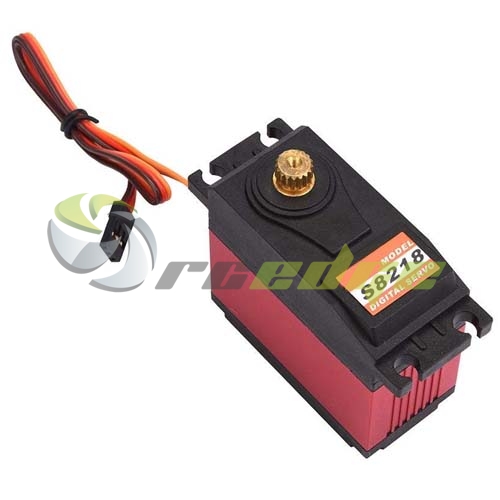

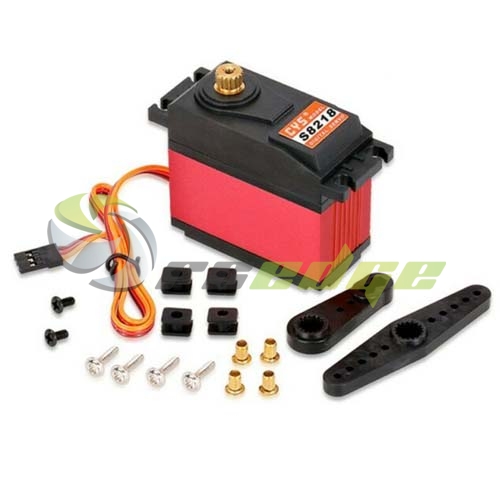

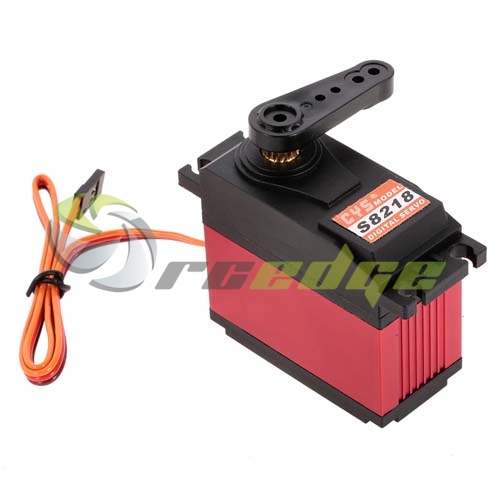

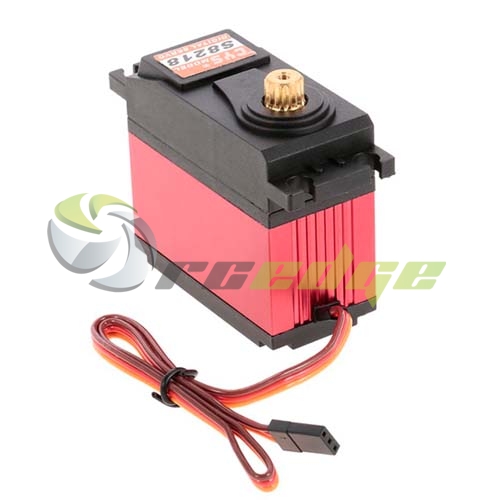

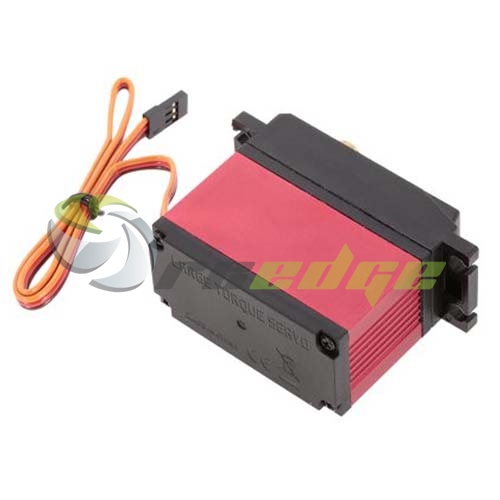

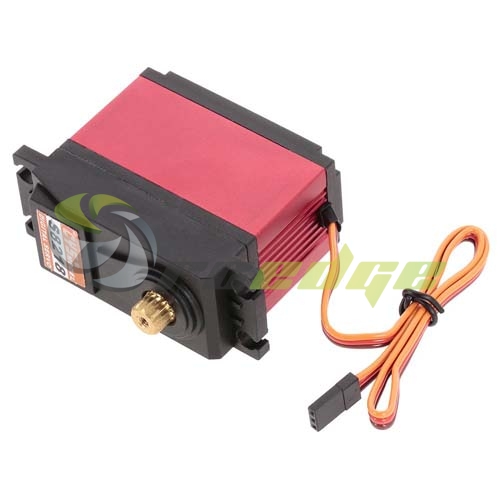

CYS S8218 Analog 6.0V Speed: 0.12 Torque: 36kg
ArrayR 780,00
Description
- Item NO.: CYS-S8218 40kg digital servo
- Description : 40Kg high torque digital servo with all metal gear
- Torque : 38kg.cm to 40kg.cm
- Speed : 0.20sec to 0.18sec/60 deg
- Voltage : 6.0Volts to 7.4Volts
- Weight : 164 plus/minus 2g
Specifications:
| Type | Digital |
|---|---|
| Weight | 164g plus/minus 1g |
| Size | 59.5 x 29.2 x 55.2mm |
| Control System | (+)Pulse Width Control 1500 micro sec Neutral |
| Operating Voltage | 6.0 to 7.4Volts |
| Operating Temperature Range | -10 to 50deg Celcius |
| Operating Speed (6.0V) | 0.20sec/60deg at no load |
| Operating Speed (7.4V) | 0.18sec/60deg at no load |
| Stall Torque (6.0V) | 38kg.cm |
| Stall Torque (7.4V) | 40kg.cm |
| Operating Angle | 45deg. one side pulse traveling 500 micro sec |
| Direction | Anticlockwise/Pulse Traveling 1000 to 2000 micro sec |
| Current Drain (6.0V) | 20mA/idle and 180mA no load operating |
| Current Drain (7.4V) | 20mA/idle and 200mA no load operating |
| Stall Current | 7.5A/8.6A |
| Dead Band Width | 4 micro sec |
| Motor Type | NdFeB motor |
| Bearing Type | Dual Ball Bearing |
| Horn gear spline | 17T |
| Gear Type | Metal |
| Connector Wire Length | 300mm plus/minus 5mm |
| Wire info | Brown/Black = Negative |
| Red = Positive | |
| Orange/White = Signal |
