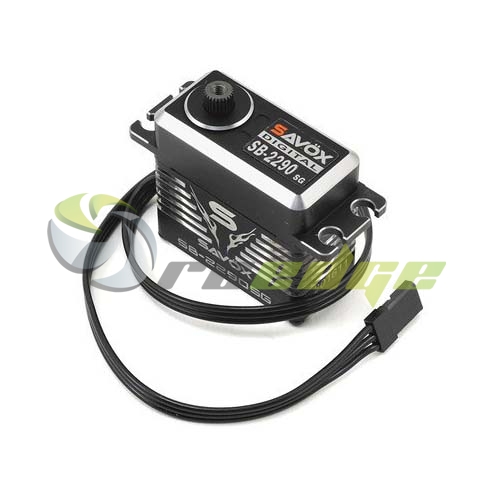

Savox SB-2290SG 7,4V Speed: 0,13 Torque: 50kg

Savox SB-2290SG - Monster Torque Brushless Servo, Black Edition .11sec / 902.7oz @ 8.4v

The powerful "Monster" performance series from Savox utilize an all aluminium case, unique brushless motor and controller technology to boost power up to 35 percent over previous generation servos.

Features:

• Full Aluminium Case
• 3 Precision Ball Bearings.
• Unique steel gears

Specifications:

• Torque @ 6v - 40.0kg / 555.5oz-in
• Torque @ 7.4v - 50.0kg / 694.4oz-in
• Torque @ 8.4v - 65.0kg / 902.7oz-in
• Speed @ 6v - 0.16 sec/60 deg
• Speed @ 7.4v - 0.13 sec/60 deg
• Speed @ 8.4v - 0.11 sec/60 deg

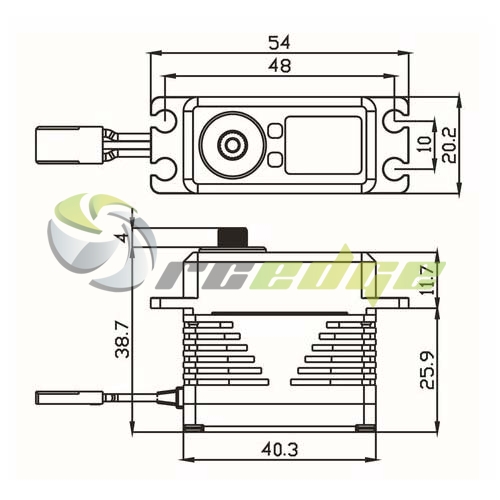

• Dimensions L x W x H (mm): 40.3 x 20.2 x 38.7
• Weight: 81g

Technical Details:

• Operating Temperature: -10 to 50 deg Celcius
• Running Current (no load): 180mA @6.0V, 220mA @7.4V
• Stall Current (at locked): 7500mA @6.0V, 9200mA @7.4V
• Idle Current: 5mA @6.0V, 5mA @7.4V
• Wire Length: 300 plus/minus 5mm
• Output Gear Spline: 25 Tooth
• Bearings: 2BB
• Operating Travel: 100 deg (1000 to 2000 micro second)
• Neutral Position: 1500 micro second
• Pulse Width Range: 800 to 2200 micro second
• Maximum Travel: Appx 130 deg (900 to 2100 micro second)
• Refresh Rate: 333 Hz
• Motor Type: Brushless
