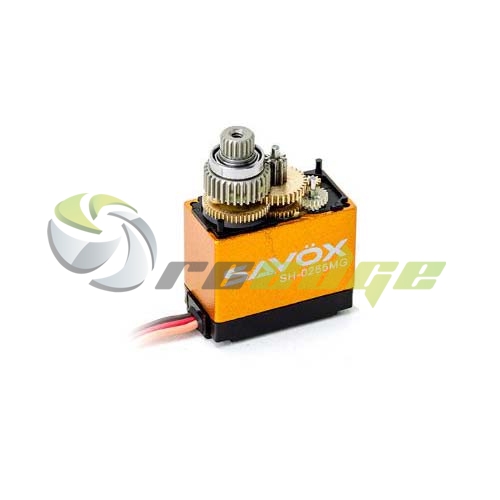

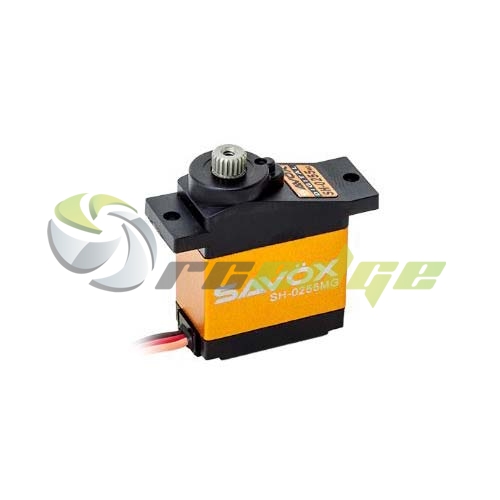

Savox SH-0255MG 6.0V Speed: 0.13 Torque: 3.9kg

Savox SH-0255MG - Micro Digital Servo .13/54 @6V

The Savox SH-0255MG micro, metal-gear, digital servo has plenty of torque to match much larger standard size servos and outperform other competitive micro-size servos.

Features:

• Metal gear train ensures durability and longevity.
• Aluminium middle case allows for cooler operating temperatures.
• Ideal for small planes, and 450 size helicopters.

Specifications:

• Torque @4.8v - 3.1kg / 43.1oz-in
• Torque @6v - 3.9kg / 54.2oz-in
• Speed @4.8v - 0.16 sec/60 deg
• Speed @6v - 0.13 sec/60 deg

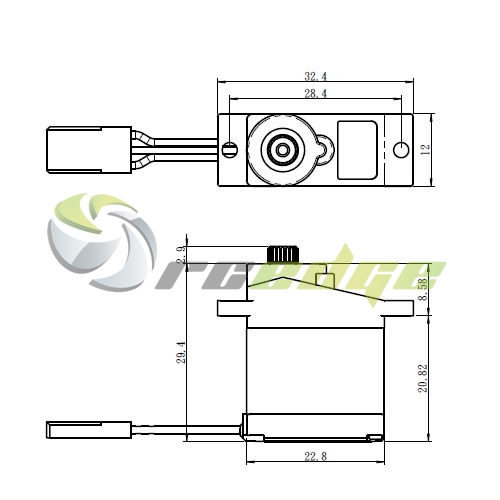

• Dimensions L x W x H (mm):22.8 x 12.0 x 29.4
• Weight: 15.8g

Technical Details:

• Operating Temperature: -10 to 50 deg Celcius
• Running Current (no load): 180mA @4.8V, 240mA @6.0V
• Stall Current (at locked): 1200mA @4.8V, 1400mA @6.0V
• Idle Current: 5mA @4.8V, 5mA @6.0V
• Wire Length: 250 plus/minus 5mm
• Output Gear Spline: 21 Tooth
• Bearings: 1BB
• Operating Travel: 90 deg (1000 to 2000 micro second)
• Neutral Position: 1500 micro second
• Pulse Width Range: 750 to 2250 micro second
• Maximum Travel: Appx 145 deg (750 to 2250 micro second)
• Refresh Rate: 240 Hz
• Motor Type: Brushed
