Swiven SW300B with BL Pump

This product is ordered on special order only, delivery time is normally within 24 hours, contact us for more information.

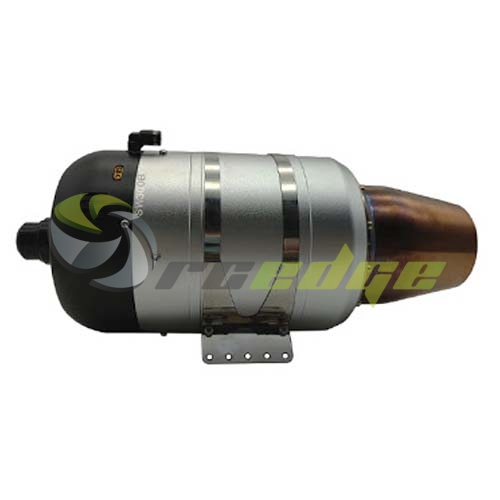

Swiwin SW300B Turbine Engine

Swiwin SW300B Turbine Engine. Version 3 ECU. Swiwin has made product improvements month after month to develop very competitive products. This engine features a brushless starter and fuel pump.

Version 3 ECU FADEC features a single channel 32-bit high speed processor chip and is software upgrade able. This ECU is now fully capable with telemetry. Featuring faster throttle response, auto-restart flameout protection, multiple engine protections, and data storage playback functions. Includes a color screen GSU to view, make changes, and monitor your engines performance and data.

Engine currently comes in silver.

Specifications:

• Thrust: 30 kg / 66.1 lb
• RPM Range: 33,000 r/min ～ 98,000 r/min
• Rated Exhaust Temperature: 700 ℃ / 1292 ℉
• Fuel Consumption: 800ml/min / 27 oz/min @ 90%
• Power: 98,000 RPM
• Fuel: Kerosene, Jet-A, or Diesel (we recommend Kerosene)
• Lubrication: 5% blend (recommend synthetic Shell Tellus32 or Mobil II)
• Weight: 2502 g / 5.5 lb
• Diameter: 132 mm / 5.2 in
• Length: 340 mm / 13.4 in
• Maintenance Interval: 25 hours (recommended)
• Voltage: 9.9v-12.6v (recommend 3s LiPo battery)

Package Includes:

• SW300B
• ECU Fadec
• GSU (Ground Service Unit)
• Fuel Pump (Brushless)
• Fuel Valve Festo Fitting
• 6mm Inline Fuel filter
• 4mm /6mm Fuel Line
• Turbine to ECU Cable
• Power Cable
