EV Peak C3 Charger
ArrayR 760,00
Description

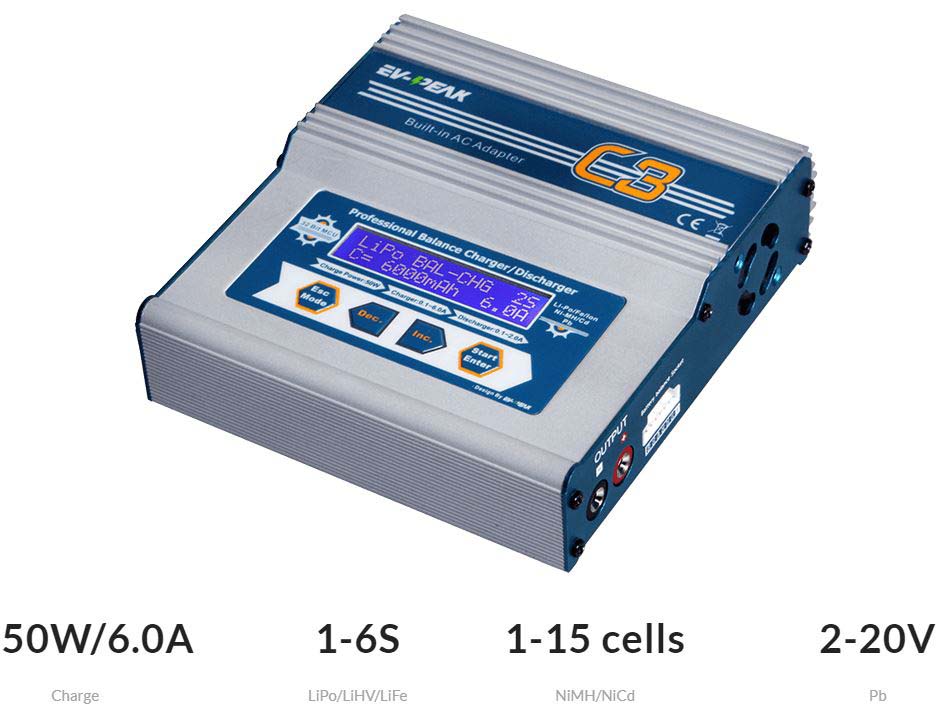

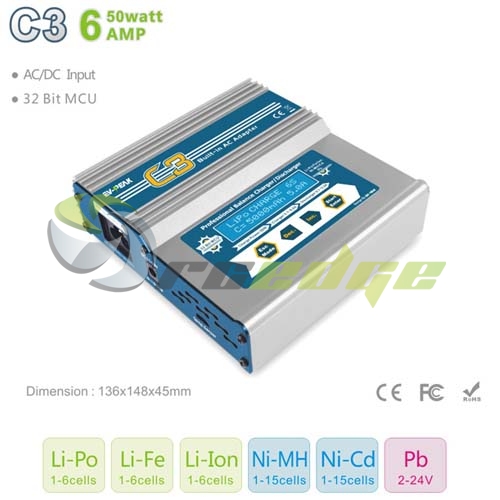

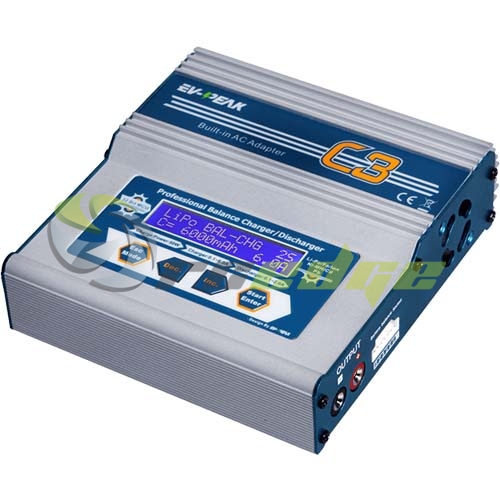

EV-Peak C3 AC/DC 6A Multi Function Intelligent Balance Charger/Discharger
Like the “carbon” element is the fundamental component of life, C Series are the first round intelligent balance chargers which are designed for worldwide RC hobby users, they form the basis of the following balance chargers of EV-PEAK. It adopts the 32-bit MCU instead of common 8-bit MCU, makes operation faster and more accurate.

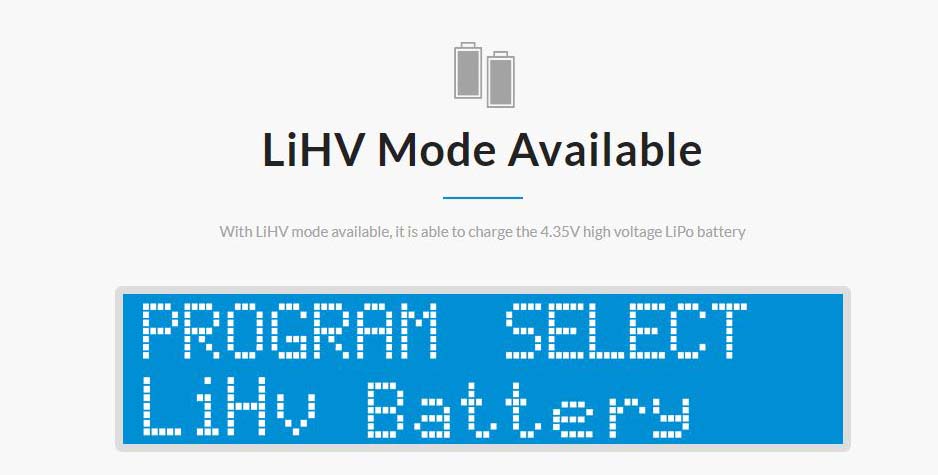

C3 charger is a basic AC/DC balance charger/discharger, it supports 1-6 cells LiPo/LiHV/LiFe batteries and 1-15 cells NiMH/NiCd batteries, maximum 6A charge.
Specifications:
| AC Input Voltage: | 100-240V |

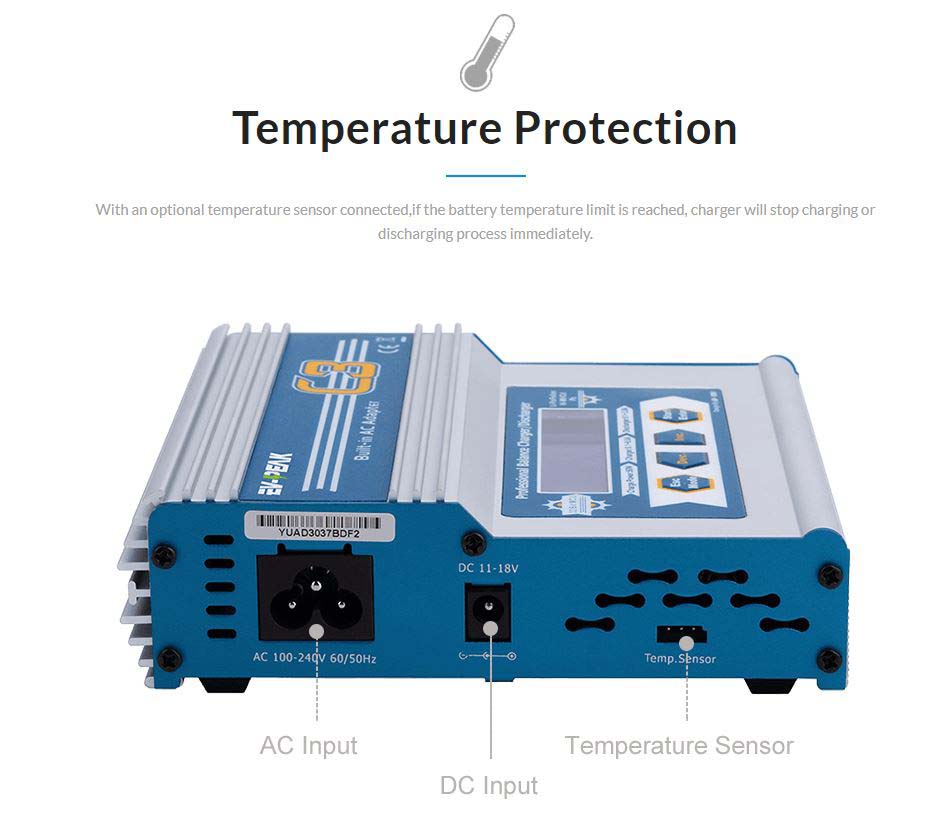

| DC Input Voltage: | 11-18V |
| Charge Power: | 50W |
| Charge Current: | 0.1-6.0A |
| Discharge Power: | 5W |
| Discharge Current: | 0.1-2.0A |
| Balance Current: | 400mA |
| LiPo/LiHV/LiFe Battery Cell Count: | 1-6S |
| NiMH/NiCd Battery Cell Count: | 1-15 Cells |
| Pb Battery: | 2-20V |
| Dimensions: | 136 x 148 x 45mm |
| Weight: | 600g |
