EV Peak CD3 Charger
ArrayR 3300,00
Description

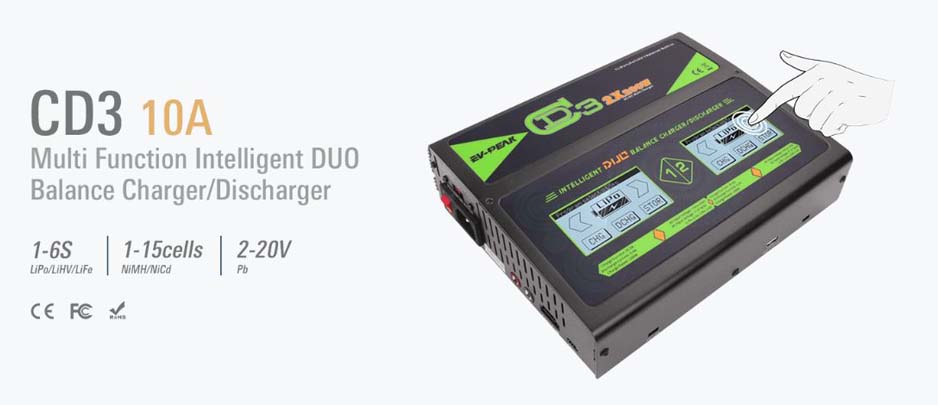

EV-Peak CD3 AC/DC 10A Multi Function Intelligent DUO Balance Charger/Discharger
Like the “carbon” element is the fundamental component of life, C Series are the first round intelligent balance chargers which are designed for worldwide RC hobby users, they form the basis of the following balance chargers of EV-PEAK. It adopts the 32-bit MCU instead of common 8-bit MCU, makes operation faster and more accurate.

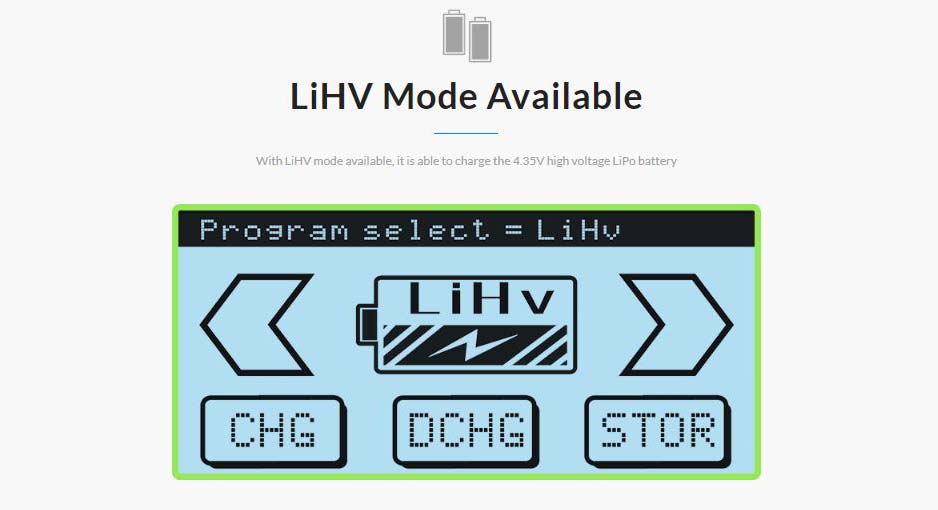

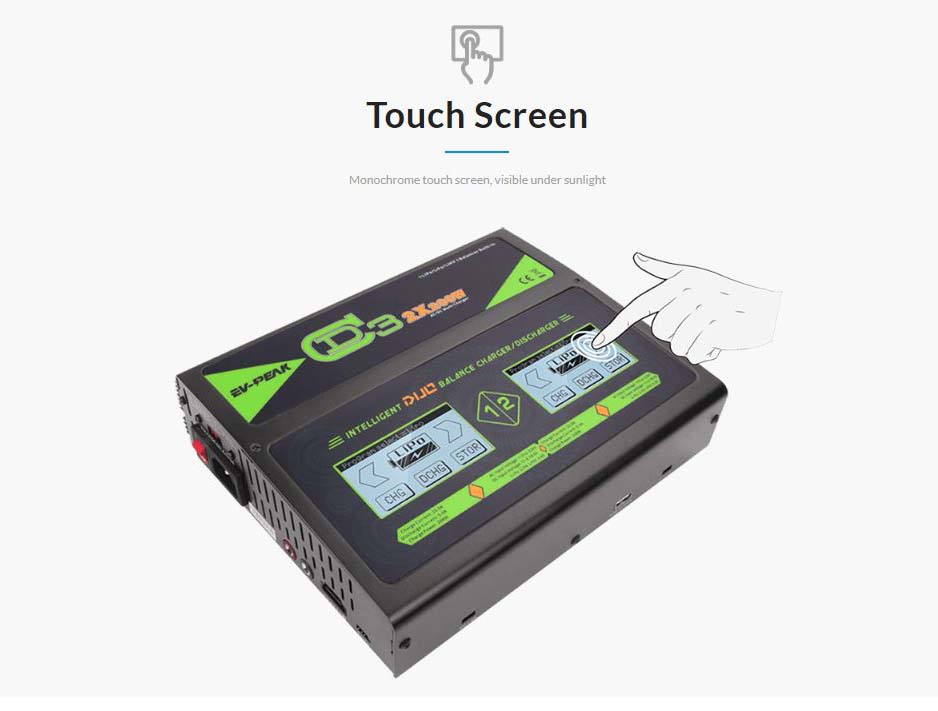

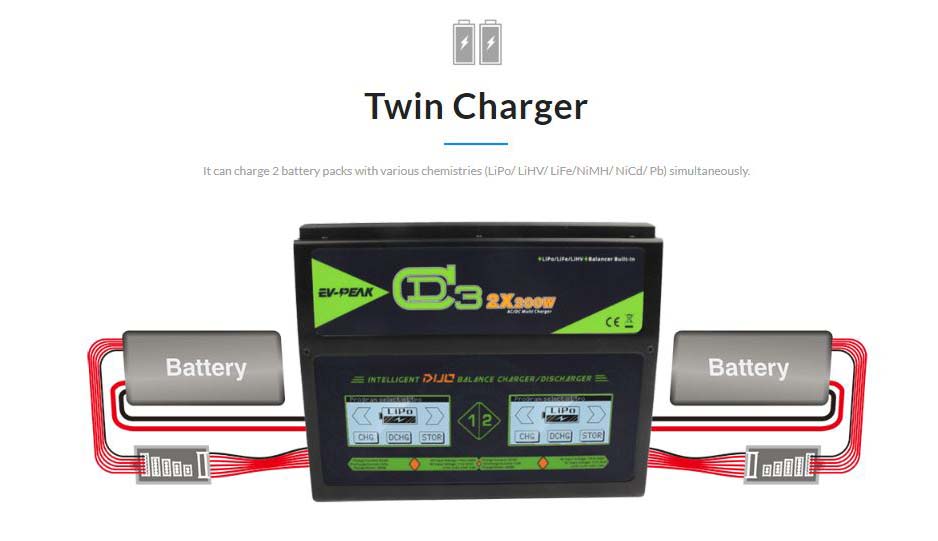

The EV-Peak CD3 charger is a AC/DC DUO touch screen balance charger/discharger, it supports 1-6 cells LiPo/LiHV/LiFe batteries and 1-15 cells NiMH/NiCd batteries, maximum 25A/200W charge per channel.
Specifications:

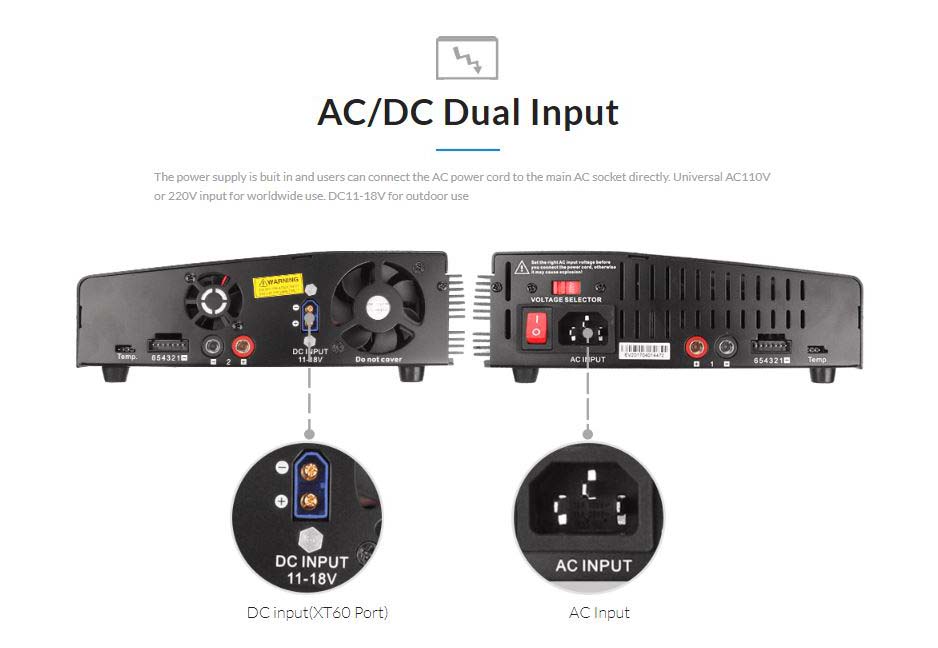

| AC Input Voltage: | 110V or 220V |
| DC Input Voltage: | 11-18V |
| Charge Power: | 200W x 2 |
| Charge Current: | 0.1-25.0A x 2 |
| Discharge Power: | 30W x 2 |
| Discharge Current: | 0.1-5.0A |
| Balance Current: | 400mA |
| LiPo/LiHV/LiFe Battery Cell Count: | 1-6S |
| NiMH/NiCd Battery Cell Count: | 1-15 Cells |
| Pb Battery: | 2-20V |
| Dimensions: | 240 x 200 x 68mm |
| Weight: | 1730g |
