Sky RC E680 Charger
ArrayR 998,00
Description

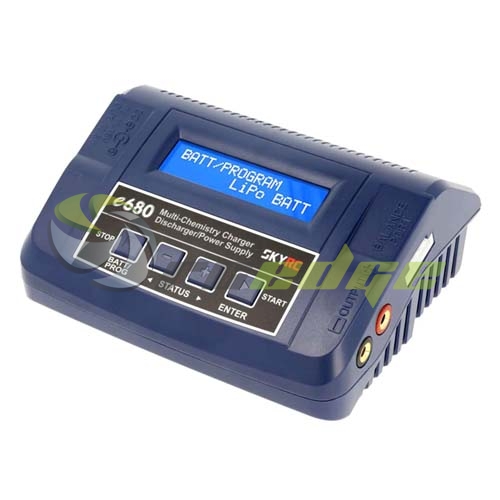

Sky RC E680 Universal Charger
- The SkyRC e680 Universal Charger is easy to use and at the same time offers a variety of features.
-
All popular battery types such as LiPo/LiIon/LiFe/LiHV/NiMH/NICd/Pb and the system battery of the DJI Mavic are supported by the microprocessor controlled SkyRC e680.
-
All common loading and unloading modes such as charge, balance charge, fast charge, storage and discharge are mastered. Especially in the Pb program, the charger offers an AGM and cold charging mode.
-
In addition, the e680 can directly supply consumers such as tire sander, LED pit lights, motor testers etc. with 13.8V and 80W max power via the power supply function.
Features
- Excellent performance data max. 10A / 80W
- Integrated power supply functionn 13.8V/80W
- 10 battery memory
- TVC Terminal Voltage Control
- Internal balancer with XH connector
- Simplest 4-key operation
- AGM and Pb cold charging modes
- Suitable for LiPo/LiHV/Lilon/LiFe/NiCd/NiMH/Pb
Specifications:
| Input Voltage AC: | 100V -240V |
| Input Voltage DC: | 11V – 18V |
| Max Charge Power: | 80W |
| Max Discharge Power: | 10W |
| Charge Current Range: | 0.1A – 8.0A |
| Discharge Current Range: | 0.1A – 2.0A |
| Balancer current: | max. 300mAh |
| Cells: LiPo/LiFe/LiIon/LiHV | 1s – 6s |
| Cells: NiMH/NiCd | 1s – 15s |
| Pb Battery Voltage: | 2V – 20V |
| Weight: | 390g |
| Dimension: | 135x110x60mm |
Included:
1 x E680 charger
1 x Power cable
1 x Charging cable XT60
1 x Connecting cable DC input
1 x Balancer board XH
1 x Manual
