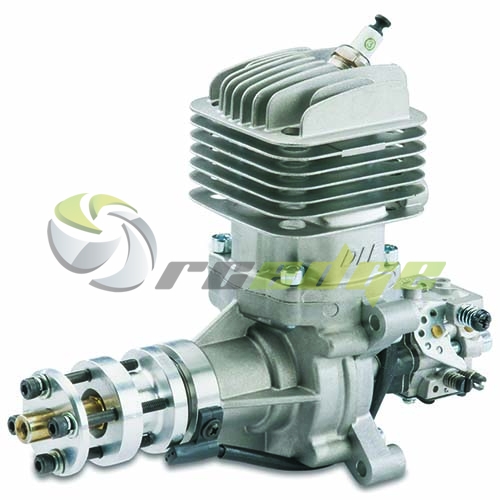

DLE 35RA

Producing 400 rpm more than the DLE-30, the DLE-35RA offers gas power convenience and performance in a popular size — great for pattern pilots and any fliers eager to give their aerobatic aircraft an extra edge. The rear exhaust design is ideal for tuned pipe setups.

• Advanced CNC machining, tight tolerances and refined porting improve compression and fuel burning efficiency to raise performance and reduce exhaust residue.
• Redesigned, lightened piston skirt provides better throttle response, fuel economy and resistance to wear.
• Included muffler's two outlets reduce back pressure and improve performance.
• Also features a special aluminum alloy crankcase, high-quality sealed crankshaft bearings and DLE-

 Stock Number: DLEG0435
Displacement: 34.9 cc (2.13 cu in)
Bore: 1.52 in (38.5 mm)
Stroke: 1.18 in (30 mm)
Total Weight: 2.77 lb (1.26 kg)
RPM Range: 1,500-8,500
Output: 4.1 hp @ 8,500 rpm
Requires: Unleaded gasoline, oil, ignition battery & propeller
Includes: Electronic ignition, muffler, spark plug, engine standoffs, integrated choke rod guide & rear-mounted carb

Ignition Battery: 4.8V-12V NiMH, LiPo or LiFe pack (Voltage regulator required if LiPo or LiFe pack is used.)
Compression Ratio: 7.6:1
Gasoline/Oil Mix: 30:1
Replacement Spark Plug: DLEG3526
Weight Breakdown: Engine: 33.02 oz (936 g); Muffler: 2.61 oz (74 g); Ignition: 5.26 oz (211 g)
